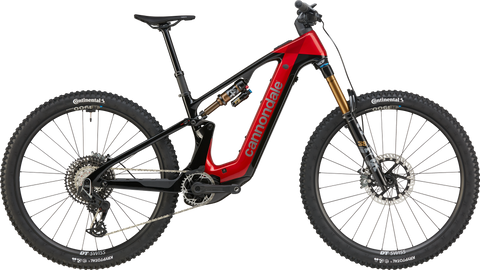

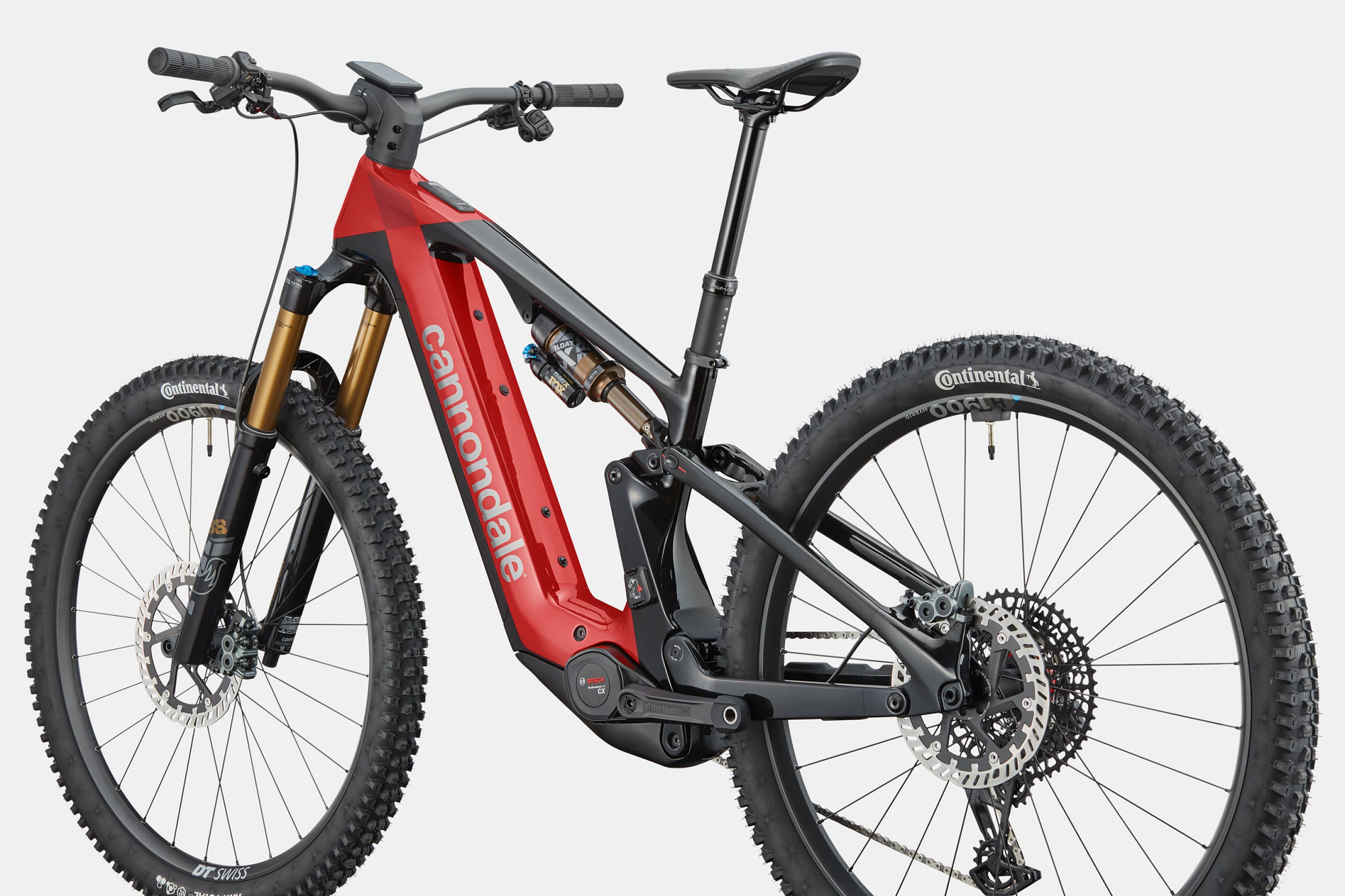

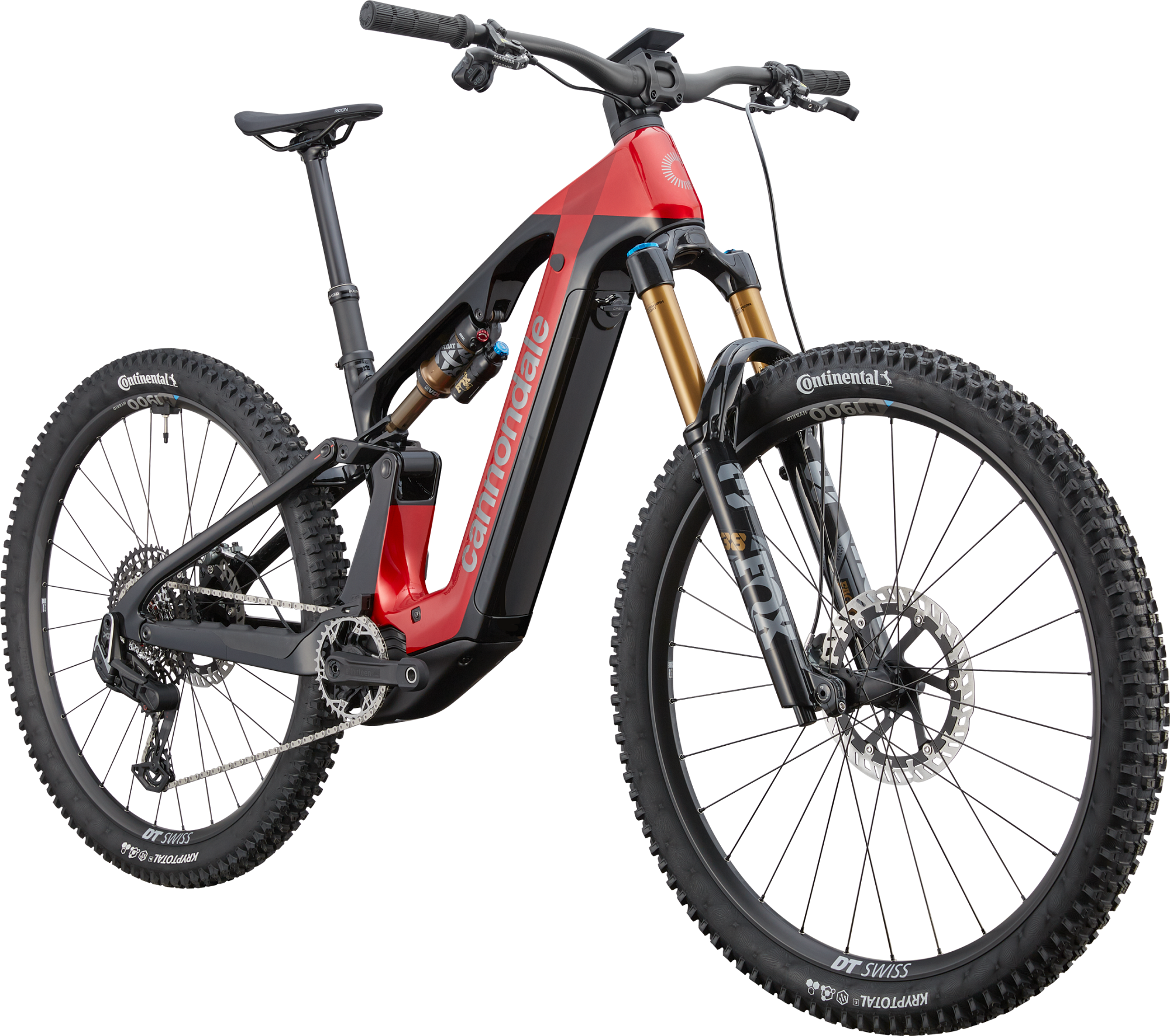

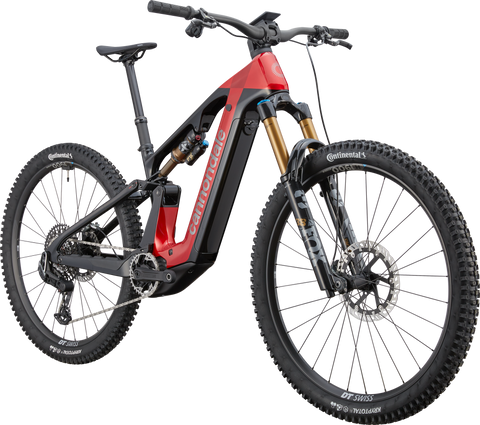

Moterra 1

Vendor: cannondale
$36.49
$121.63
$36.49
More Juice, No Excuse The Moterra packs massive power, range, and silky suspension, handling rugged terrain like...
color: Metallic Red
size: SM
Subtotal: $36.49
10 customers are viewing this product

Free Shipping

Free standard shipping on orders

Free Returns

Learn More.

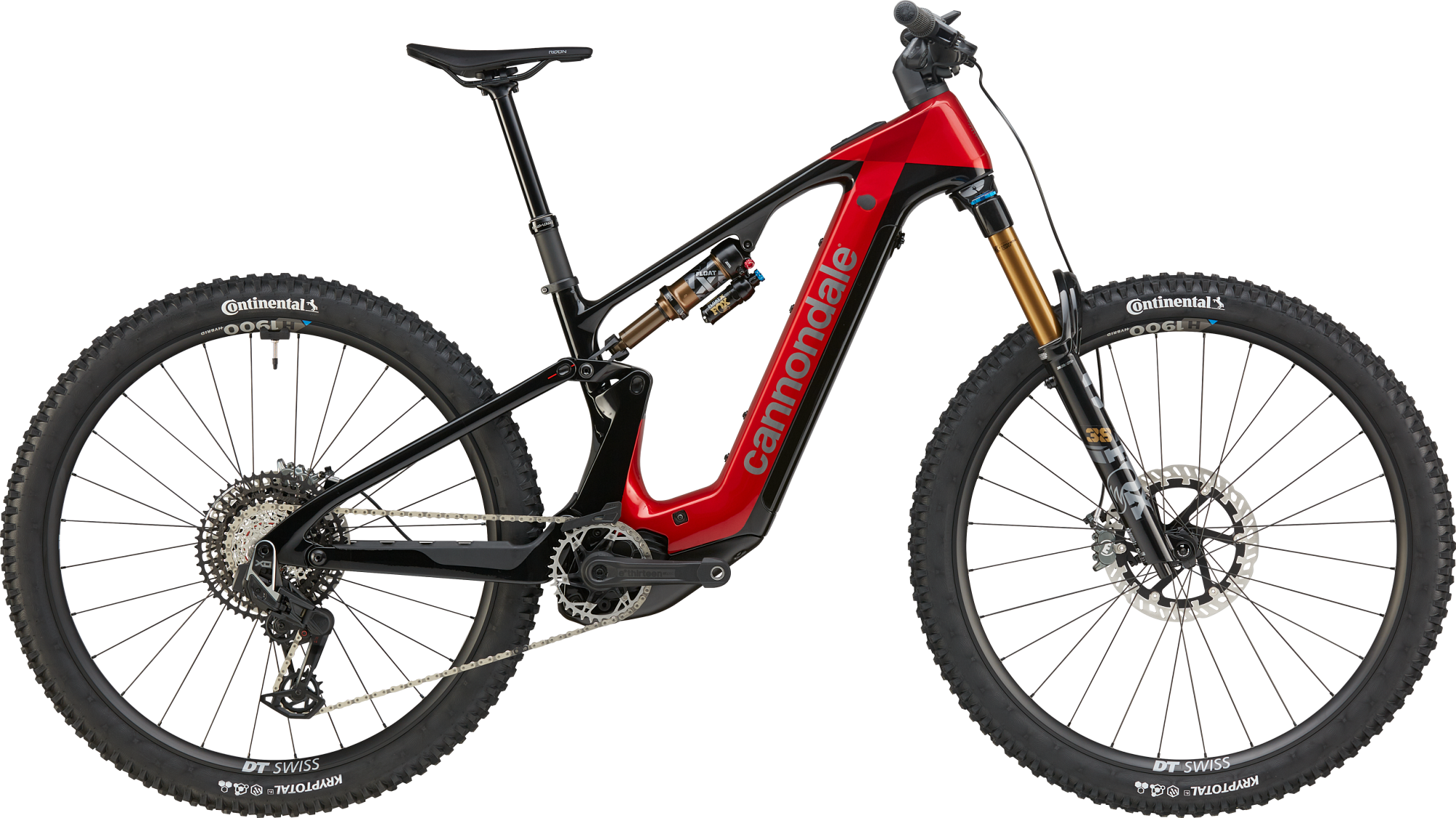

Moterra 1

Moterra 1

$121.63 $36.49

Moterra 1

$121.63 $36.49
color: Metallic Red
size: SM

More Juice, No Excuse

The Moterra packs massive power, range, and silky suspension, handling rugged terrain like a luxury off-roader. Built to go further—faster.

Model Description

Moterra 1 balances brute strength with trail-savvy finesse. Featuring a new, lightweight, full carbon frame and 160/150mm of travel, it’s built for those who demand big power, silky smooth delivery, and absolute control. A Bosch CX motor with an 800Wh battery gives you the juice for even the biggest missions. A Kiox 500 display integrated into the stem keeps you connected, while the top-end Fox 38 Factory fork and Float X Factory shock soak up every bump. SRAM XO/GX AXS wireless shifting, Magura MT7 brakes, and robust DT Swiss H1900 wheels bring top-tier precision, making it the perfect blend of speed, style, and capability.

What it's for

Endless spins, uphill wins, and permanent grins on all kinds of trails, from the mild to the wild

Highlights

  • A lightweight carbon fiber frame - Proportional Response size-specific suspension, tuned for specifically for the air shock and 29” wheels
  • Bosch's most powerful system – Performance CX motor and 800Wh battery. Incredibly natural power delivery and huge range
  • Top of the line Fox Factory suspension – 160mm Float Factory 38 fork and Float X Factory piggyback shock
  • Rugged DT Swiss H 1900 Spline EMTB Wheelset – Built to survive - 30mm inner width, 370 hubs with durable Ratchet LN internals
  • Wireless electronic shifting from a blended SRAM Eagle XO/GX AXS 12-speed group
  • Powerful, controllable stopping from Magura’s MT7 4-piston stoppers with 220/203mm rotors

Award Winner

Specs

Details

  • Platform
  • Model Name
    Moterra 1
  • Model Code
    C65014U

Frameset

  • Frame
    Moterra Carbon, 29" wheels, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5” – 1.8” tapered headtube, 40mm two-bolt kickstand compatible
  • Fork
    Fox Float Factory 38, 160mm, GripX2 Damper, Kashima coating, 15x110mm Kabolt thru-axle, tapered steerer, 44mm offset
  • Headset
    Acros ICR, 1.5" to 1.8", sealed bearings
  • Rear Shock
    Fox Float X Factory, Kashima coating, 2 pos adj, EVOL LV, 230x62.5mm

E-System

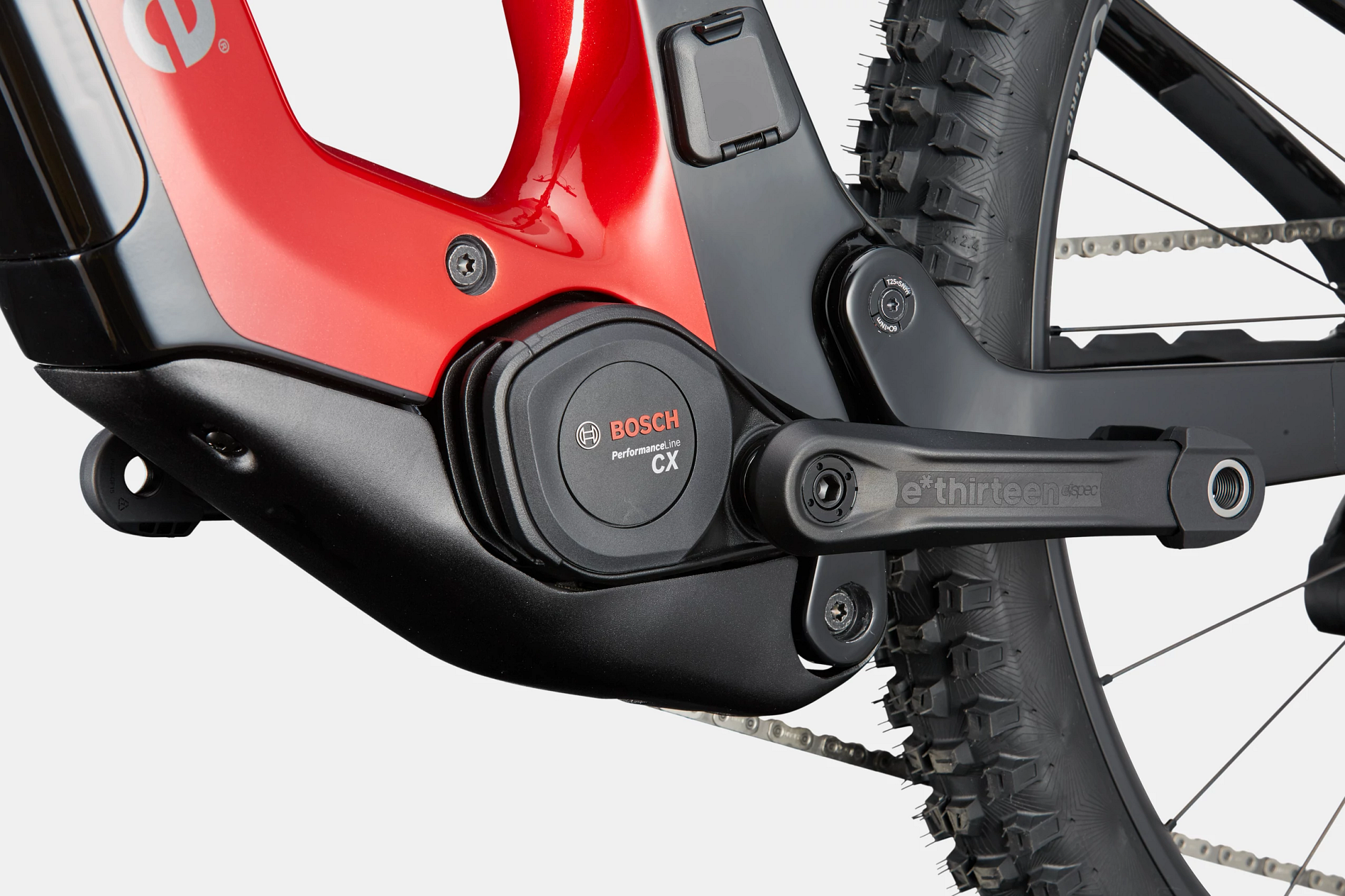

  • Drive Unit
    Bosch Performance Line CX
  • Battery
    Bosch PowerTube, 800Wh
  • Charger
    Bosch 4A

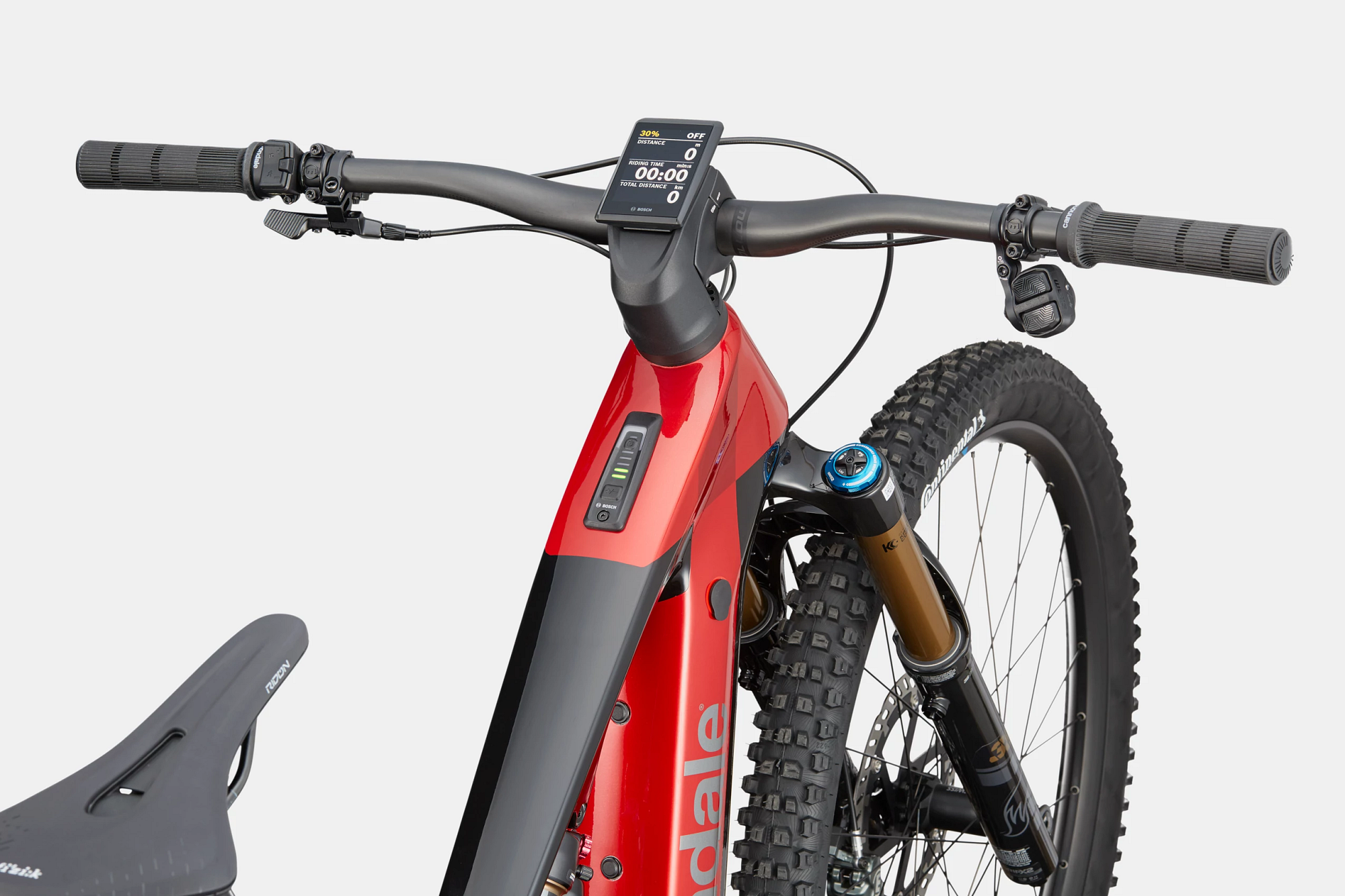

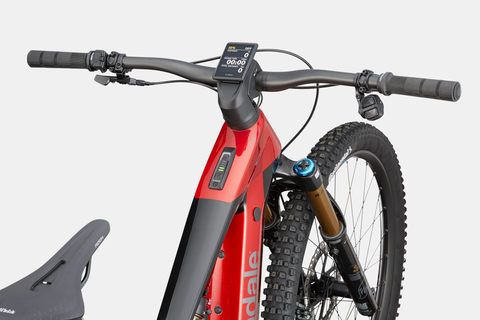

  • Display
    Top Tube System Controller w/ Bosch Kiox 500 & Mini Remote

Drivetrain

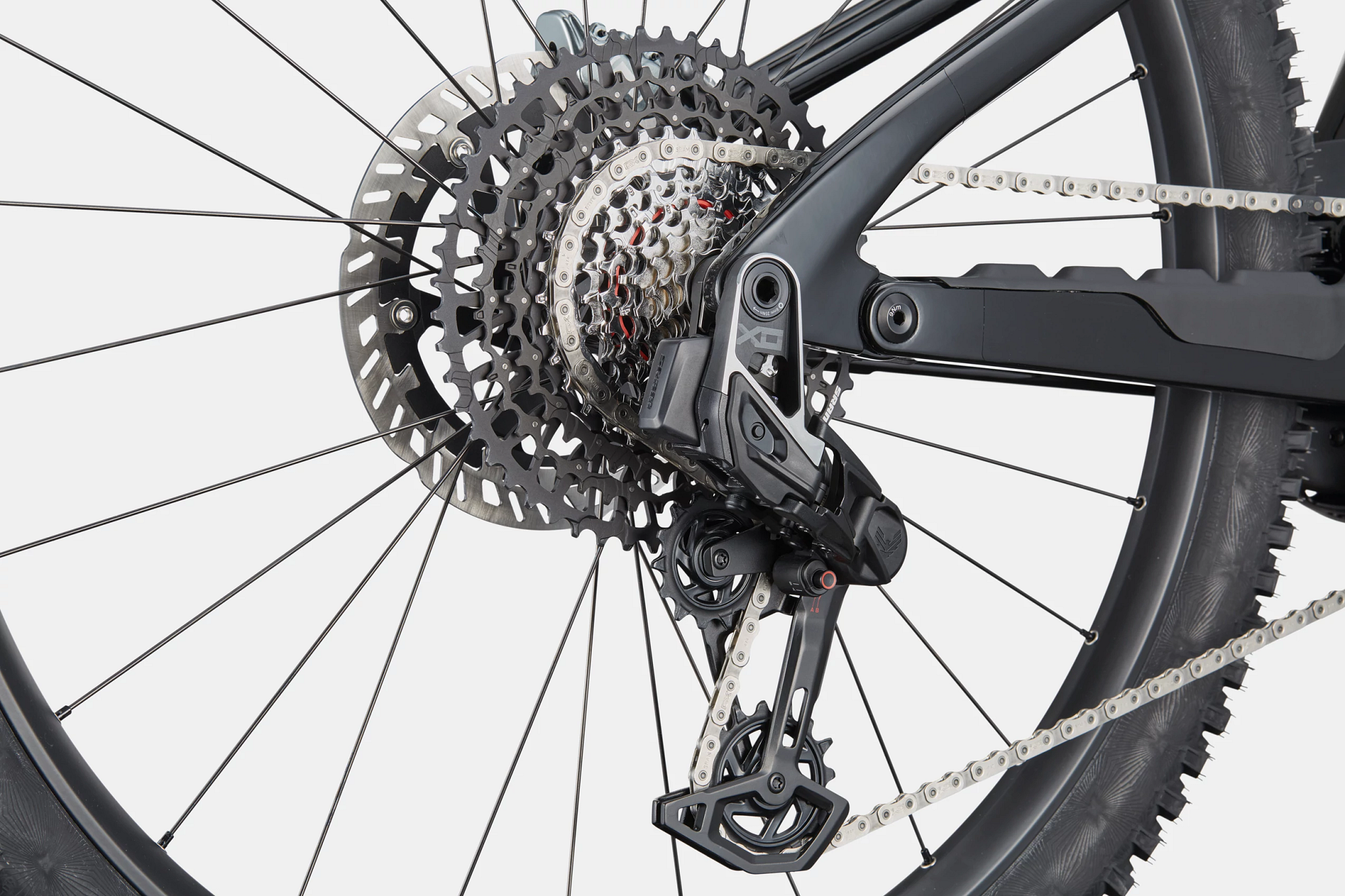

  • Rear Derailleur
    SRAM XO Eagle AXS, T-Type
  • Shifters
    SRAM Eagle AXS T-Type Pod Controller
  • Chain
    SRAM GX T-Type, 12-speed
  • Crank
    e*thirteen e*spec Helix Core, 55mm chainline, 160mm, 34T
  • Rear Cogs
    SRAM GX Eagle T-Type, 10-52, 12-speed

Brakes

  • Brakes
    Magura MT7 4-piston hydraulic disc, 220/203mm MDR-P rotors
  • Brake Levers
    Magura MT7 hydraulic disc

Wheels

  • Rims
    DT Swiss H 1900 Spline, 30mm inner width, TC (tubeless ready)
  • Spokes
    DT Swiss Competition, straight pull
  • Tire Size
    2.4
  • Wheel Size
    29
  • Hubs
    (F) DT Swiss 370, 15x110mm thru-axle / (R) DT Swiss 370 LN Ratchet System, 12x148mm thru-axle, 6-bolt
  • Tires
    (F) Continental Kryptotal-F, 29x2.4", Enduro Soft Black Foldable / (R) Continental Kryptotal-R, 29x2.4", Enduro Soft Black Foldable
  • Front Tire
    Continental Kryptotal-F, 29x2.4", Enduro Soft Black Foldable
  • Rear Tire
    Continental Kryptotal-R, 29x2.4", Enduro Soft Black Foldable

Components

  • Handlebar
    HollowGram SAVE riser bar, Carbon, 35mm clamp, 30mm rise, 8° sweep, 5° rise, 780mm
  • Stem
    Cannondale Trail HeadsUp w/ integrated display mount, 3D Forged 6061 Alloy, 1-1/8", 45mm, 0°
  • Grips
    Cannondale TaperRidge
  • Saddle
    Fizik Terra Ridon X5, 145mm, Wingflex, S-Alloy Mobius rail
  • Seatpost
    Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL)

Extra

  • Extra 1
    Tubeless Valves, Bosch PowerMore range extender compatible

Please note that, based on component availability and other factors, specifications are subject to change without notice.
